- Place of Origin: dongguan
- Brand Name: henghao
- Model Number: HSD960/HSD1080/HSD1280/HSD1390/HSD1480/HSD1680/HSD1610/HSD1810
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: CO2
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness: 0-30mm(materials)
Cutting Area: 1300*2500mm
Cutting Speed: 0-700mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: AutoCAD
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Guangdong, China (Mainland)
Brand Name: GOOD LASER
Model Number: CCD1325
Certification: CE
After-sales Service Provided: Overseas third-party support available

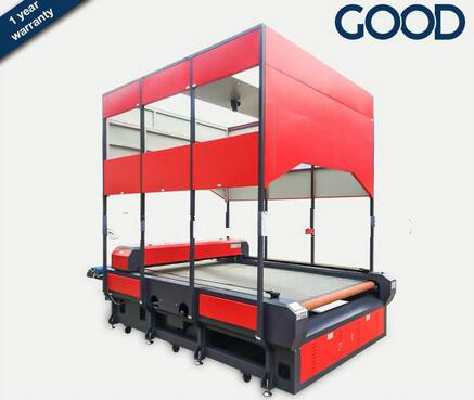

Product name: Dongguan Good Laser CCD Great Format CO2 Laser Cutting Machine
Laser power: 130 W
Laser tube: Sealed CO2 Glass Tube
Color: Red
Cooling system: Water Cooling System
Repeating: ±0.01mm
Working voltage: 220V 10%/50HZ~60HZ
Working temperature: 0℃-45℃
Moving system: Offline stepping control system
Support Graphic Format: BMP PLT DST AL DXF

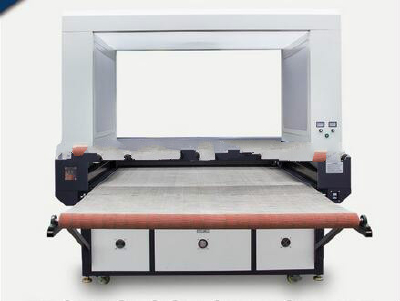

Main features
In printing,embroidery industry pattern size is differ,pattern varied, not one processing completion.The company specialized research and development of automatic camera positioning laser cutting machine, the machine support a large design, pattern of the camera cutting.When cutting more than camera view range of design,can be made image mosaicing function for machining.Biggest improves the machine automatic procedures,improve efficiency, and save hours.
To achieve the cut surface, the optical processing demand,laser cutting machine success will be large and medium-sized machine design elements,structure successfully transplanted to the concept of product r&d and manufacturing process--unique features point positioning cutting,two point positioning cutting,automatic extraction contour cutting and so on many kinds of identification way,equipped with special of CCD lens,ensure that sheet of the trademark cutting precision, no leak phenomenon cut,faster recognition,cutting high efficiency.Automatic two-headed camera positioning series is for the sake of users,automatic capturing positioning cutting machine,incision smooth without loose edge,deformation,consistent measure and accurate;But at the same time multi-layer cutting ,any complex shape;High efficiency,low cost,the effect is perfect,but the design side side the products.
Applicable Industry
Applicable to printing design,logo,model,clothing,textiles,electronics,car interior and other industries.
- Place of Origin: dongguan
- Brand Name: henghao
- Model Number: HSD960/HSD1080/HSD1280/HSD1390/HSD1480/HSD1680/HSD1610/HSD1810
Laser type | CO2 laser type |
Laser power | 70w/80w/100w/120w/150w |
Model of machine | HSD960/HSD1080/HSD1280/HSD1390/HSD1480/HSD1680/HSD1610/HSD1810 |
Engraving area | 900*600mm/1000*800mm/1200*800mm/1300*900mm/1400*800mm/1600*800mm/1600*1000mm/1800*1000mm |
Driving Mechanism | Ball Screw |
Engraving speed | 0-6000mm/s |
Cutting speed | 0-700mm/s |
Repeatability Accuracy | ≤±0.04mm |
Min.Line Width | 0.1mm |
Cooling Mode | Water Cooling Chiller |
Repeating | ±0.01mm |
Moving system | stepping control system |
Whole power | ≤1200w |
Working voltage | AC220V ±10%50/60Hz |
Operating temperature | 0 ℃-45 ℃ |
Prerating humidity | 5%-95% |
Controling software | AI, Corel DRAW, Photoshop, HengHao Laser software |
Graphic format supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Workbench | Cellular/Grid/The blade |
Gross weight | 180kg/210kg/240kg/280kg/300kg/330kg/350kg/370kg/410kg |
Dimension | 1510*1105*1200/1820*1320*1200/1920*1420*1200/2020*1320*1200/2220* |
